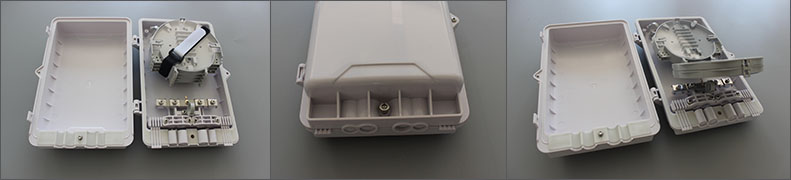

Termination Box YS-GP-05
    Application
  • Termination box YS-GP-05 is designed for FTTx application, which is suitable for jointing optical cables and drop cable, protects fiber optic splices and helps to distribute drop cables.
  • Characteristics
  • Light weight, small size, easy installation.
  • Made of engineering plastic material, which has mechanical strength, reliable and long lasting.
  • Designed for Wall and Pole mount applications
  • Easy for installation and maintenance.
  • ROHS compliance
Specification
Model No YS-GP-05
Inlet Cable Port 2 ports for cable with max dia. 13mm 2 ports for cable with max dia. 16mm
Drop Cable Port 8 ports for drop cable with dia. 3mm
Capacity of the box 96F(4tray, each tray 24F)
Capacity of splice tray 24F
Dimensions (mm) 280 x 195 x 83 mm
