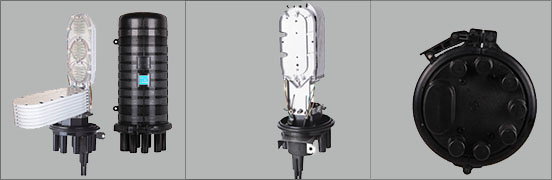

Fiber Optic Splice Closure YS-GPJ-808
    Features
  • Advanced internal structure design.
  • Easy to re-enter, it never requires re-entry tool it.
  • The closure is spacious enough for winding and storing fibers.
  • Splice Trays are design in SLIDE-IN-LOCK and its opening angle is about 90°.
  • The curved diameter meets with international standard.
  • Easy and fast to increase and reduce FOSTs.
  • Innovative elastic intergrated seal fitting.
  • Application
  • Suitable for bunchy & ribbon fibers
  • Aerial, underground, wall-mounting, hand hole-mounting, pole-mounting and duct-mounting
Specification
Model No YS-GPJ-808
Splice Tray Each tray max for 72F
Capacity of Closure 648F(9 trays, each tray max for 72F)
Size(mm) 510mmx210mm
Cable ports 1 oval port + 6 round ports
Max. diameter of cable(mm) 1 oval port + 7 round ports 1 oval port is max for the cable with dia 40mm 7 small round ports: each port is max for the cable with dia 20mm
