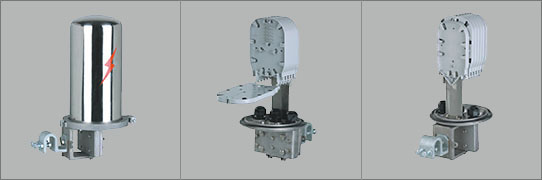

Fiber Optic Splice Closure YS-OPGW-01
    Features
  • The closure is designed for OPGW cable or ADSS cable.
  • Sheath retention & central strength member fasten system included.
  • resistance to chemical and U.V attack.
  • Installation and reentry with a minimum of tools.
  • All hardware are included.
  • Closure can be flash test.
  • Protection class: IP68.
  • RoHS compliance.
    • Application
  • Tower Mounting, Pole Mounting.
Specification
Model No YS-OPGW-01
Splice Tray Each tray max for 24F
Capacity of Closure 144F
Dimensions(Height x Diameter, mm) 485mm x 250mm
Cable ports 3 round ports
Max. diameter of cable(mm) each port for 1 cable with max 16 mm
